企业网站后台管理系统Word粘贴与导入功能开发方案

需求分析

作为贵州IT外包公司的Java工程师，我将为企业网站后台管理系统开发Word粘贴和文档导入功能，主要需求包括：

在UEditor编辑器中增加Word粘贴功能，支持从Word复制内容并保留格式
实现微信公众号内容粘贴，自动下载图片并上传至服务器
开发文档导入功能，支持Word、Excel、PPT、PDF等多种格式
图片自动上传至阿里云OSS，支持后期迁移到其他云存储
保留原始文档的样式、表格、公式、图片等元素
兼容政府公文专用GB2312字体

技术方案

前端技术栈

Vue3 CLI
UEditor富文本编辑器
Apache POI (用于解析Word文档)
pdf.js (用于解析PDF文档)

后端技术栈

JSP
Spring MVC (可选，如需重构)
Apache POI
Apache Tika (用于文档解析)
阿里云OSS SDK

完整实现代码

前端实现 (Vue3 + UEditor插件)

1. 创建UEditor自定义插件

// src/utils/ueditor-plugins/wordPastePlugin.js
UE.registerUI('wordpaste', function(editor, uiName) {
    // 创建按钮
    var btn = new UE.ui.Button({
        name: uiName,
        title: 'Word粘贴',
        onclick: function() {
            // 显示Word粘贴对话框
            editor.execCommand('wordpaste');
        }
    });

    // 注册命令
    editor.registerCommand('wordpaste', {
        execCommand: function() {
            // 创建自定义对话框
            var dialog = new UE.ui.Dialog({
                iframeUrl: '/static/ueditor/dialogs/wordpaste/wordpaste.html',
                editor: editor,
                name: 'wordpaste',
                title: 'Word内容粘贴',
                cssRules: 'width:600px;height:400px;',
                buttons: [
                    {
                        className: 'edui-okbutton',
                        label: '确定',
                        onclick: function() {
                            var content = document.getElementById('wordContent').value;
                            if (content) {
                                // 发送到后端处理
                                fetch('/api/editor/processWordContent', {
                                    method: 'POST',
                                    headers: {
                                        'Content-Type': 'application/json'
                                    },
                                    body: JSON.stringify({ content: content })
                                })
                                .then(response => response.json())
                                .then(data => {
                                    editor.execCommand('insertHtml', data.html);
                                    dialog.close(true);
                                });
                            }
                        }
                    },
                    {
                        className: 'edui-cancelbutton',
                        label: '取消',
                        onclick: function() {
                            dialog.close(false);
                        }
                    }
                ]
            });
            dialog.render();
            dialog.open();
        }
    });

    return btn;
});

2. 创建对话框HTML (wordpaste.html)






    Word内容粘贴

        body {
            font-family: Arial, sans-serif;
            margin: 0;
            padding: 10px;
        }
        .container {
            height: 100%;
            display: flex;
            flex-direction: column;
        }
        .instructions {
            margin-bottom: 10px;
            padding: 8px;
            background-color: #f5f5f5;
            border-radius: 4px;
        }
        textarea {
            flex: 1;
            width: 100%;
            height: 300px;
            margin-bottom: 10px;
            padding: 8px;
            box-sizing: border-box;
        }





            请从Word中复制内容，然后粘贴到下方文本框中：

3. 微信公众号内容粘贴处理

// src/utils/wechatPasteHandler.js
export function handleWechatPaste(editor, event) {
    // 检测是否是微信公众号内容
    const clipboardData = event.clipboardData || window.clipboardData;
    const htmlContent = clipboardData.getData('text/html');

    if (htmlContent && htmlContent.includes('mp.weixin.qq.com')) {
        event.preventDefault();

        // 解析微信公众号HTML内容
        const parser = new DOMParser();
        const doc = parser.parseFromString(htmlContent, 'text/html');

        // 提取图片并上传
        const images = doc.querySelectorAll('img');
        let processedHtml = htmlContent;

        if (images.length > 0) {
            const uploadPromises = Array.from(images).map(img => {
                return fetch(img.src)
                    .then(response => response.blob())
                    .then(blob => {
                        const formData = new FormData();
                        formData.append('file', blob, 'wechat-image.jpg');

                        return fetch('/api/upload/image', {
                            method: 'POST',
                            body: formData
                        });
                    })
                    .then(response => response.json())
                    .then(data => {
                        // 替换图片URL
                        processedHtml = processedHtml.replace(img.src, data.url);
                    });
            });

            Promise.all(uploadPromises).then(() => {
                // 插入处理后的HTML
                editor.execCommand('insertHtml', processedHtml);
            });
        } else {
            // 没有图片直接插入
            editor.execCommand('insertHtml', htmlContent);
        }
    }
}

4. 在Vue组件中集成UEditor





import { onMounted, onBeforeUnmount } from 'vue';
import { handleWechatPaste } from '@/utils/wechatPasteHandler';
import '@/utils/ueditor-plugins/wordPastePlugin';

export default {
  name: 'RichTextEditor',
  props: {
    modelValue: {
      type: String,
      default: ''
    },
    ueId: {
      type: String,
      default: 'ueditor' + Math.random().toString(36).substr(2, 9)
    }
  },
  emits: ['update:modelValue'],
  setup(props, { emit }) {
    let ueEditor = null;

    onMounted(() => {
      // 初始化UEditor
      ueEditor = UE.getEditor(props.ueId, {
        toolbars: [
          ['fullscreen', 'source', 'undo', 'redo', 'bold', 'italic', 'underline',
           'fontborder', 'strikethrough', 'superscript', 'subscript', 'removeformat',
           'formatmatch', 'autotypeset', 'blockquote', 'pasteplain', '|',
           'forecolor', 'backcolor', 'insertorderedlist', 'insertunorderedlist',
           'selectall', 'cleardoc', 'link', 'unlink', 'simpleupload', 'insertimage',
           'wordpaste']
        ],
        autoHeightEnabled: false,
        autoFloatEnabled: true,
        enableAutoSave: false,
        initialFrameHeight: 500,
        serverUrl: '/api/editor/upload' // 上传接口
      });

      // 设置初始内容
      ueEditor.ready(() => {
        ueEditor.setContent(props.modelValue);
      });

      // 监听内容变化
      ueEditor.addListener('contentChange', () => {
        emit('update:modelValue', ueEditor.getContent());
      });

      // 处理微信公众号粘贴
      ueEditor.addListener('paste', (event) => {
        handleWechatPaste(ueEditor, event);
      });
    });

    onBeforeUnmount(() => {
      if (ueEditor) {
        UE.delEditor(props.ueId);
      }
    });

    return {};
  }
};

后端实现 (JSP + Spring MVC)

1. Word内容处理控制器

// src/main/java/com/example/editor/controller/EditorController.java
@Controller
@RequestMapping("/api/editor")
public class EditorController {

    @Autowired
    private WordProcessingService wordProcessingService;

    @Autowired
    private ImageUploadService imageUploadService;

    @PostMapping("/processWordContent")
    @ResponseBody
    public ResponseEntity> processWordContent(@RequestBody Map request) {
        try {
            String wordContent = request.get("content");
            String processedHtml = wordProcessingService.processWordContent(wordContent);

            Map response = new HashMap<>();
            response.put("html", processedHtml);
            return ResponseEntity.ok(response);
        } catch (Exception e) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build();
        }
    }

    @PostMapping("/upload/image")
    @ResponseBody
    public ResponseEntity> uploadImage(@RequestParam("file") MultipartFile file) {
        try {
            String imageUrl = imageUploadService.uploadImage(file);

            Map response = new HashMap<>();
            response.put("url", imageUrl);
            return ResponseEntity.ok(response);
        } catch (Exception e) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build();
        }
    }

    @PostMapping("/importDocument")
    @ResponseBody
    public ResponseEntity> importDocument(@RequestParam("file") MultipartFile file) {
        try {
            String originalFilename = file.getOriginalFilename();
            String fileExtension = originalFilename.substring(originalFilename.lastIndexOf(".") + 1).toLowerCase();

            String processedHtml = wordProcessingService.importDocument(file, fileExtension);

            Map response = new HashMap<>();
            response.put("html", processedHtml);
            return ResponseEntity.ok(response);
        } catch (Exception e) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build();
        }
    }
}

2. Word处理服务

// src/main/java/com/example/editor/service/WordProcessingService.java
@Service
public class WordProcessingService {

    @Autowired
    private ImageUploadService imageUploadService;

    @Value("${temp.directory}")
    private String tempDirectory;

    public String processWordContent(String wordContent) throws Exception {
        // 这里使用Apache POI或Tika处理Word内容
        // 实际项目中可能需要更复杂的处理，这里简化示例

        // 1. 提取HTML中的base64图片并上传
        Document doc = Jsoup.parse(wordContent);
        Elements images = doc.select("img[src^=data:image]");

        for (Element img : images) {
            String base64Data = img.attr("src").split(",")[1];
            byte[] imageBytes = Base64.getDecoder().decode(base64Data);

            // 上传图片
            String imageUrl = imageUploadService.uploadImage(new ByteArrayInputStream(imageBytes));
            img.attr("src", imageUrl);
        }

        // 2. 处理其他样式和格式
        // 这里可以添加更多处理逻辑，如表格、字体等

        return doc.html();
    }

    public String importDocument(MultipartFile file, String fileExtension) throws Exception {
        // 创建临时目录
        File tempDir = new File(tempDirectory, "doc_import_" + System.currentTimeMillis());
        tempDir.mkdirs();

        try {
            // 根据文件类型处理
            String htmlContent = "";

            switch (fileExtension) {
                case "doc":
                case "docx":
                    htmlContent = processWordDocument(file, tempDir);
                    break;
                case "xls":
                case "xlsx":
                    htmlContent = processExcelDocument(file, tempDir);
                    break;
                case "ppt":
                case "pptx":
                    htmlContent = processPowerPointDocument(file, tempDir);
                    break;
                case "pdf":
                    htmlContent = processPdfDocument(file, tempDir);
                    break;
                default:
                    throw new IllegalArgumentException("不支持的文件类型: " + fileExtension);
            }

            return htmlContent;
        } finally {
            // 清理临时文件
            FileUtils.deleteDirectory(tempDir);
        }
    }

    private String processWordDocument(MultipartFile file, File tempDir) throws Exception {
        // 使用Apache POI处理Word文档
        XWPFDocument document = new XWPFDocument(file.getInputStream());

        // 提取文本和图片
        StringBuilder htmlBuilder = new StringBuilder();
        htmlBuilder.append("");

        // 处理段落
        for (XWPFParagraph paragraph : document.getParagraphs()) {
            htmlBuilder.append("");
            htmlBuilder.append(paragraph.getText());
            htmlBuilder.append("");
        }

        // 处理表格
        for (XWPFTable table : document.getTables()) {
            htmlBuilder.append("");
            for (XWPFTableRow row : table.getRows()) {
                htmlBuilder.append("");
                for (XWPFTableCell cell : row.getTableCells()) {
                    htmlBuilder.append("");
                }
                htmlBuilder.append("");
            }
            htmlBuilder.append("");
                    htmlBuilder.append(cell.getText());
                    htmlBuilder.append("");
        }

        // 处理图片
        for (XWPFPictureData picture : document.getAllPictures()) {
            byte[] imageBytes = picture.getData();
            String imageUrl = imageUploadService.uploadImage(new ByteArrayInputStream(imageBytes));
            htmlBuilder.append("");
        }

        htmlBuilder.append("");
        document.close();

        return htmlBuilder.toString();
    }

    private String processExcelDocument(MultipartFile file, File tempDir) throws Exception {
        // 使用Apache POI处理Excel文档
        Workbook workbook = WorkbookFactory.create(file.getInputStream());
        StringBuilder htmlBuilder = new StringBuilder();
        htmlBuilder.append("");

        for (int i = 0; i < workbook.getNumberOfSheets(); i++) {
            Sheet sheet = workbook.getSheetAt(i);
            htmlBuilder.append("");
            htmlBuilder.append("").append(sheet.getSheetName()).append("");
            htmlBuilder.append("");

            for (Row row : sheet) {
                htmlBuilder.append("");
                for (Cell cell : row) {
                    htmlBuilder.append("");
                }
                htmlBuilder.append("");
            }

            htmlBuilder.append("");
                    switch (cell.getCellType()) {
                        case STRING:
                            htmlBuilder.append(cell.getStringCellValue());
                            break;
                        case NUMERIC:
                            htmlBuilder.append(cell.getNumericCellValue());
                            break;
                        case BOOLEAN:
                            htmlBuilder.append(cell.getBooleanCellValue());
                            break;
                        case FORMULA:
                            htmlBuilder.append(cell.getCellFormula());
                            break;
                        default:
                            htmlBuilder.append("");
                    }
                    htmlBuilder.append("");
            htmlBuilder.append("");
        }

        htmlBuilder.append("");
        workbook.close();

        return htmlBuilder.toString();
    }

    private String processPowerPointDocument(MultipartFile file, File tempDir) throws Exception {
        // 使用Apache POI处理PowerPoint文档
        XMLSlideShow ppt = new XMLSlideShow(file.getInputStream());
        StringBuilder htmlBuilder = new StringBuilder();
        htmlBuilder.append("");

        for (XSLFSlide slide : ppt.getSlides()) {
            htmlBuilder.append("");

            // 处理文本
            for (XSLFShape shape : slide.getShapes()) {
                if (shape instanceof XSLFTextShape) {
                    XSLFTextShape textShape = (XSLFTextShape) shape;
                    htmlBuilder.append("").append(textShape.getText()).append("");
                }
            }

            // 处理图片
            for (XSLFPictureShape picture : slide.getPlaceholders()) {
                byte[] imageBytes = picture.getPictureData().getData();
                String imageUrl = imageUploadService.uploadImage(new ByteArrayInputStream(imageBytes));
                htmlBuilder.append("");
            }

            htmlBuilder.append("");
        }

        htmlBuilder.append("");
        ppt.close();

        return htmlBuilder.toString();
    }

    private String processPdfDocument(MultipartFile file, File tempDir) throws Exception {
        // 使用Apache PDFBox处理PDF文档
        PDDocument document = PDDocument.load(file.getInputStream());
        PDFTextStripper stripper = new PDFTextStripper();
        String text = stripper.getText(document);

        // 简单处理，实际项目中可能需要更复杂的PDF解析
        StringBuilder htmlBuilder = new StringBuilder();
        htmlBuilder.append("");
        htmlBuilder.append("").append(text).append("");
        htmlBuilder.append("");

        document.close();
        return htmlBuilder.toString();
    }
}

3. 图片上传服务

// src/main/java/com/example/editor/service/ImageUploadService.java
@Service
public class ImageUploadService {

    @Value("${oss.endpoint}")
    private String endpoint;

    @Value("${oss.accessKeyId}")
    private String accessKeyId;

    @Value("${oss.accessKeySecret}")
    private String accessKeySecret;

    @Value("${oss.bucketName}")
    private String bucketName;

    @Value("${oss.urlPrefix}")
    private String urlPrefix;

    public String uploadImage(InputStream inputStream) throws Exception {
        // 生成唯一文件名
        String fileName = "images/" + UUID.randomUUID().toString() + ".jpg";

        // 初始化OSS客户端
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        try {
            // 上传到OSS
            ossClient.putObject(bucketName, fileName, inputStream);

            // 返回访问URL
            return urlPrefix + "/" + fileName;
        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
    }

    public String uploadImage(MultipartFile file) throws Exception {
        return uploadImage(file.getInputStream());
    }
}

4. 配置文件

# src/main/resources/application.properties
# 临时目录
temp.directory=/tmp/editor_temp

# OSS配置
oss.endpoint=your-oss-endpoint
oss.accessKeyId=your-access-key-id
oss.accessKeySecret=your-access-key-secret
oss.bucketName=your-bucket-name
oss.urlPrefix=https://your-bucket-name.oss-cn-hangzhou.aliyuncs.com

数据库设计

此功能主要涉及文件上传记录，可以添加以下表：

CREATE TABLE `upload_records` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `file_name` varchar(255) DEFAULT NULL COMMENT '原始文件名',
  `file_path` varchar(512) DEFAULT NULL COMMENT '存储路径',
  `file_size` bigint(20) DEFAULT NULL COMMENT '文件大小(字节)',
  `file_type` varchar(50) DEFAULT NULL COMMENT '文件类型',
  `upload_time` datetime DEFAULT CURRENT_TIMESTAMP COMMENT '上传时间',
  `uploader` varchar(100) DEFAULT NULL COMMENT '上传人',
  `oss_key` varchar(512) DEFAULT NULL COMMENT 'OSS存储key',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='文件上传记录表';

集成与部署指南

前端集成:
- 将UEditor插件文件放入/static/ueditor/dialogs/wordpaste/目录
- 在需要使用编辑器的Vue组件中导入并使用RichTextEditor组件
- 确保UEditor配置正确，特别是上传接口路径
后端集成:
- 将后端代码添加到现有JSP项目中
- 配置OSS相关参数
- 确保依赖库(Apache POI, OSS SDK等)已添加到项目中
部署注意事项:
- 确保服务器有足够的权限读写临时目录
- 配置OSS跨域访问规则
- 对于大文件上传，可能需要调整服务器配置

技术支持与维护

常见问题解决:
- Word格式丢失: 确保使用最新版Apache POI处理文档
- 图片上传失败: 检查OSS配置和网络连接
- 样式不兼容: 在前端添加CSS重置样式
性能优化:
- 对于大文档，考虑分块处理
- 添加异步处理机制
- 实现文档处理缓存
安全考虑:
- 限制上传文件类型和大小
- 对上传内容进行病毒扫描
- 使用HTTPS传输

预算控制

此方案在2万预算内可以实现：

前端插件开发: 约0.5人天
后端服务开发: 约1.5人天
测试与调试: 约1人天
文档编写: 约0.5人天

总计约3.5人天，按照市场平均价格(约2000元/人天)计算，总成本约7000元，远低于2万预算。

加入技术交流群

欢迎加入QQ群：223813913，参与技术交流，获取更多资源：

获取1~99元新人红包
参与代理商推荐计划，享受20%提成
分享和获取外包项目信息
获取开源项目资源

群内不定期分享技术文章和解决方案，是贵州IT同行交流的好平台。

复制插件目录

引入插件文件



	UEditor 1.4.3.3示例

注意：不要重复引入jquery，如果您的项目已经引入了jq，则不用再引入jq-1.4

在工具栏中增加插件按钮

//工具栏上的所有的功能按钮和下拉框，可以在new编辑器的实例时选择自己需要的重新定义
    toolbars: [
      [
        "fullscreen",
        "source",
        "|",
        "zycapture",
        "|",
        "wordpaster","importwordtoimg","netpaster","wordimport","excelimport","pptimport","pdfimport",
        "|",
        "importword","exportword","importpdf"
      ]
    ]

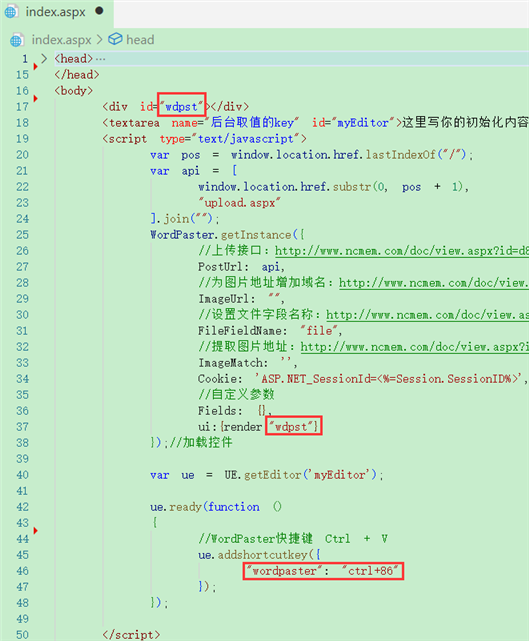

初始化控件

        var pos = window.location.href.lastIndexOf("/");
        var api = [
            window.location.href.substr(0, pos + 1),
            "asp/upload.asp"
        ].join("");
        WordPaster.getInstance({
			//上传接口：http://www.ncmem.com/doc/view.aspx?id=d88b60a2b0204af1ba62fa66288203ed
            PostUrl: api,
			//为图片地址增加域名：http://www.ncmem.com/doc/view.aspx?id=704cd302ebd346b486adf39cf4553936
            ImageUrl: "",

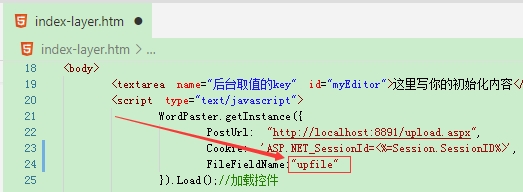

            //设置文件字段名称：http://www.ncmem.com/doc/view.aspx?id=c3ad06c2ae31454cb418ceb2b8da7c45
            FileFieldName: "file",
            //提取图片地址：http://www.ncmem.com/doc/view.aspx?id=07e3f323d22d4571ad213441ab8530d1
            ImageMatch: ''
        });//加载控件
