C4.5算法建立决策树分类模型（原理+例题+解题思路+C代码）
1 题目
根据下表输入采用C4.5算法建立决策树分类模型
1、定义决策树数据结构
2、编写方法计算属性的信息增益率
3、选择节点分裂属性
4、建立决策树
5、对新的输入进行分类预测
2 原理
C4.5 决策树算法是 ID3 的改进型。它以信息增益率（Gain Ratio）作为节点划分标准，可有效避免偏向于取值较多的属性，具有更好的泛化性能。

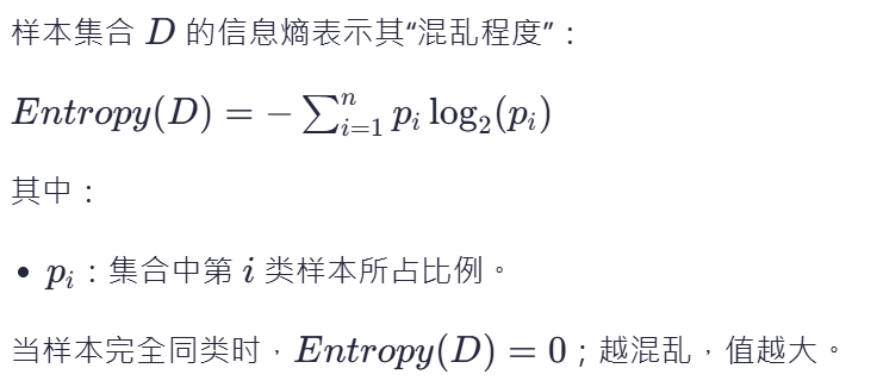

1. 信息熵的定义
3.信息增益与分裂信息
4.信息增益率
5.决策树生成过程
3 代码编写思路
1.定义数据结构与准备数据集
实验的第一步是抽象并构建用来存放训练数据与树节点的数据结构。决策树是一种典型的树形层次结构，而原始数据集可以被视为属性字段组成的二维表格。在 C 语言中，这种数据抽象通过 struct 结构体实现最为直观。
Sample 结构体精确地对应了每一条训练样本，记录天气数据集中的四个属性（Outlook、Temperature、Humidity、Windy）和一个标签（Play）。
Node 结构体则用于描述决策树中的一个节点。每个节点可能是叶节点（is_leaf=1)，也可能是分裂节点（is_leaf=0），并通过 children[] 递归引用子节点，实现树的嵌套层次关系。
然后将天气数据集的14条样本以静态数组形式硬编码，方便直接运行测试。这种数组结构使得程序在设计时无需文件解析部分，重点集中于算法逻辑实现。
#define MAX_SAMPLES 20
#define MAX_ATTR 5
#define MAX_VALUE_LEN 20
#define MAX_RULE_LEN 256
#define MAX_RULES 50
//一、结构体定义
typedef struct Node
{ char attribute[MAX_VALUE_LEN];
char label[MAX_VALUE_LEN];
int is_leaf;
int branch_count;
char branch_values[MAX_SAMPLES][MAX_VALUE_LEN];
struct Node *children[MAX_SAMPLES];
} Node;
typedef struct
{ char Outlook[MAX_VALUE_LEN];
char Temperature[MAX_VALUE_LEN];
char Humidity[MAX_VALUE_LEN];
char Windy[MAX_VALUE_LEN];
char Play[MAX_VALUE_LEN];
} Sample;
// 二、训练数据集定义
Sample data[MAX_SAMPLES] =
{ {"sunny", "hot", "high", "false", "No"},
{"sunny", "hot", "high", "true", "No"},
{"overcast", "hot", "high", "false", "Yes"},
{"rain", "mild", "high", "false", "Yes"},
{"rain", "cool", "normal", "false", "Yes"},
{"rain", "cool", "normal", "true", "No"},
{"overcast", "cool", "normal", "true", "Yes"},
{"sunny", "mild", "high", "false", "No"},
{"sunny", "cool", "normal", "false", "Yes"},
{"rain", "mild", "normal", "false", "Yes"},
{"sunny", "mild", "normal", "true", "Yes"},
{"overcast", "mild", "high", "true", "Yes"},
{"overcast", "hot", "normal", "false", "Yes"},
{"rain", "mild", "high", "true", "No"}
};
int total_samples = 14;
char *attributes[] = {"Outlook", "Temperature", "Humidity", "Windy"};
int attr_count = 4;
2.信息熵与增益运算模块的实现
信息熵（Entropy）度量了样本集合的不确定性，是决策树划分判断的核心指标。为了构建决策树，需要实现一系列基于信息论的计算函数。entropy() 函数用于计算给定样本集的香农熵，以衡量其纯度。split_info() 计算属性的分裂信息，而 info_gain() 则计算属性的信息增益，并在需要时打印详细的子集熵、权重和贡献，以展示其内部计算逻辑。最后，gain_ratio() 函数通过信息增益和分裂信息计算信息增益率，这是 C4.5 算法选择最佳分裂属性的核心指标。
①字符串比较工具 equals()：
为了提高代码的可读性并简化字符串比较操作，首先定义了一个简单的辅助函数 equals()。它通过封装 strcmp() 函数，将复杂的 strcmp(a, b) == 0 表达式简化为更符合自然语言习惯的 equals(a, b)，使代码逻辑更加清晰。
int equals(const char *a, const char *b)
{ return strcmp(a, b) == 0;
}
/* ---------- 计算样本集合的熵 ---------- */
double entropy(Sample *data, int size)
{ if (size == 0) return 0.0;
int count_yes = 0, count_no = 0;
for (int i = 0; i < size; i++)
{ if (equals(data[i].Play, "Yes")) count_yes++;
else count_no++;
}
double p1 = (double)count_yes / size, p2 = (double)count_no / size;
double e = 0.0;
if (p1 > 0) e -= p1 * log2(p1);
if (p2 > 0) e -= p2 * log2(p2);
return e;
}
②信息熵计算函数 entropy()：
信息熵是衡量样本集纯度的核心指标。entropy() 函数实现了香农熵公式 。它接收一个样本子集 data 及其大小 size 作为输入，首先遍历子集，统计出“Yes”和“No”两种标签的数量，然后计算出它们各自的比例 p1p1 和 p2p2。最后，根据公式计算并返回该子集的信息熵。当子集为空或完全纯净时，熵为 0。
/* ---------- 计算样本集合的熵 ---------- */
double entropy(Sample *data, int size)
{ if (size == 0) return 0.0;
int count_yes = 0, count_no = 0;
for (int i = 0; i < size; i++)
{ if (equals(data[i].Play, "Yes")) count_yes++;
else count_no++;
}
double p1 = (double)count_yes / size, p2 = (double)count_no / size;
double e = 0.0;
if (p1 > 0) e -= p1 * log2(p1);
if (p2 > 0) e -= p2 * log2(p2);
return e;
}
③分裂信息计算函数 split_info()：
C4.5 算法使用信息增益率而非信息增益，是为了消除对具有多取值属性的偏好。split_info() 函数就是用于计算信息增益率公式中的分母——分裂信息（Split Information）。该函数首先统计指定属性 attr 的所有不同取值及其出现次数，然后根据各取值所占的比例计算并返回该属性的内在信息值。
/* ---------- 计算分裂信息（Split Info） ---------- */
double split_info(Sample *data, int size, char *attr)
{ if (size == 0) return 0;
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int counts[MAX_SAMPLES] = {0}, value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attr, "Outlook")) val = data[i].Outlook;
else if (equals(attr, "Temperature")) val = data[i].Temperature;
else if (equals(attr, "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ counts[j]++;
found = 1;
break;
}
if (!found)
{ strcpy(values[value_count], val);
counts[value_count++] = 1;
}
}
double si = 0;
for (int i = 0; i < value_count; i++)
{ double p = (double)counts[i] / size;
si -= p * log2(p);
}
return si;
}
④信息增益计算函数 info_gain()：
信息增益（Information Gain）表示的是在得知某一属性的取值后，系统不确定性的减少量。info_gain() 函数实现了公式 Gain(A)=Entropy(D)−InfoA(D)Gain(A)=Entropy(D)−InfoA(D)。它首先调用 entropy() 计算整个数据集的总熵。
然后，它遍历指定属性 attr 的所有不同取值，将数据集划分为多个子集，并对每个子集递归调用 entropy() 计算其熵。最后，将这些子集熵进行加权求和，得到条件熵 InfoA(D)InfoA(D)，并从总熵中减去它，得到信息增益。该函数还包含一个 print_detail 参数，用于控制是否打印详细的中间计算过程，极大地增强了算法的可解释性和调试便利性。
/* ---------- 计算信息增益（Info Gain） ---------- */
double info_gain(Sample *data, int size, char *attr, int print_detail)
{ double total_entropy = entropy(data, size);
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attr, "Outlook")) val = data[i].Outlook;
else if (equals(attr, "Temperature")) val = data[i].Temperature;
else if (equals(attr, "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ found = 1;
break;
}
if (!found) strcpy(values[value_count++], val);
}
double weighted_entropy = 0;
if (print_detail)
printf(" 子集熵计算:
");
for (int i = 0; i < value_count; i++)
{ Sample subset[MAX_SAMPLES];
int subset_size = 0;
for (int j = 0; j < size; j++)
{ char *val;
if (equals(attr, "Outlook")) val = data[j].Outlook;
else if (equals(attr, "Temperature")) val = data[j].Temperature;
else if (equals(attr, "Humidity")) val = data[j].Humidity;
else val = data[j].Windy;
if (equals(val, values[i]))
subset[subset_size++] = data[j];
}
double subset_entropy = entropy(subset, subset_size);
double p = (double)subset_size / size;
weighted_entropy += p * subset_entropy;
if (print_detail)
printf(" %-10s: 熵=%.4f, 权重=%.2f, 贡献=%.4f
",
values[i], subset_entropy, p, p * subset_entropy);
}
if (print_detail)
{ printf(" Info_%s(D) = %.4f
", attr, weighted_entropy);
printf(" 信息增益计算: %.4f - %.4f = %.4f
",
total_entropy, weighted_entropy, total_entropy - weighted_entropy);
}
return total_entropy - weighted_entropy;
}
⑤信息增益率计算函数 gain_ratio()
gain_ratio() 函数是 C4.5 算法的核心决策函数。它将 info_gain() 和 split_info() 的计算结果组合起来，实现了信息增益率的计算：GainRatio(A)=Gain(A)SplitInfo(A)GainRatio(A)=SplitInfo(A)Gain(A)。通过调用前面已经封装好的模块，该函数的实现变得非常简洁。它首先获取信息增益 ig 和分裂信息 si，然后返回二者的比值。为了避免除以零的错误，当分裂信息为0时，直接返回0。这个函数最终的返回值将作为选择最佳分裂属性的依据。
/* ---------- 信息增益率 ---------- */
double gain_ratio(Sample *data, int size, char *attr)
{ double ig = info_gain(data, size, attr, 0);
double si = split_info(data, size, attr);
return (si == 0) ? 0 : ig / si;
}
3.递归构建决策树
在所有核心计算函数准备就绪后，实验进入最关键的步骤：构建决策树。这一过程通过一个核心的递归函数 build_tree() 来实现，完美体现了“分而治之”的算法思想。
（1）递归终止条件的判断
build_tree() 函数首先需要确定递归何时停止。C4.5 算法定义了两种主要的终止情况，对应代码中的两个辅助函数：
all_same_label(): 检查当前节点包含的样本是否已经完全属于同一类别。如果是，说明已经到达了一个“纯净”的叶节点，无需再进行划分。
attr_count == 0: 检查是否已经用尽了所有可供划分的属性。如果所有属性都已作为分裂节点使用过，即使样本集还不纯净，也必须停止划分，并根据当前样本中数量最多的类别（即“少数服从多数”原则）来创建一个叶节点。majority_label() 函数负责实现这一逻辑。
（2）核心递归逻辑：build_tree()
build_tree() 函数的执行流程如下：
①创建新节点：为当前子树的根节点动态分配内存。
②检查终止条件：调用上述辅助函数判断是否应创建叶节点。如果是，则标记该节点为叶（is_leaf = 1），赋予其标签，并返回该节点，结束当前分支的递归。
③选择最佳分裂属性：如果递归继续，则遍历所有尚未使用的属性，调用 gain_ratio() 函数计算每个属性的信息增益率，并记录下增益率最高的那个属性作为当前节点的最佳分裂属性。
④划分数据集与递归调用：确定最佳分裂属性后，程序会：
a. 遍历该属性的所有不同取值（如 Outlook 的 'sunny', 'overcast', 'rain'）。
b. 对于每个取值，从当前数据集中筛选出所有匹配该值的样本，形成一个新的、更小的子集。
c. 从可用属性列表中移除刚刚使用过的分裂属性。
d. 携带这个新的样本子集和更新后的属性列表，递归调用 build_tree() 函数自身，并将返回的子树根节点连接到当前节点的 children 数组中。
这个过程会自顶向下不断重复，直到所有分支都满足终止条件，最终构建出一棵完整的决策树。
//四、决策树构建
int all_same_label(Sample *data, int size)
{ for (int i = 1; i < size; i++)
if (!equals(data[0].Play, data[i].Play))
return 0;
return 1;
}
const char *majority_label(Sample *data, int size)
{ int count_yes = 0;
for (int i = 0; i < size; i++)
if (equals(data[i].Play, "Yes"))
count_yes++;
return (count_yes >= size - count_yes) ? "Yes" : "No";
}
Node *build_tree(Sample *data, int size, char **attrs, int attr_count)
{ Node *node = (Node *)malloc(sizeof(Node));
memset(node, 0, sizeof(Node));
if (all_same_label(data, size) || attr_count == 0)
{ node->is_leaf = 1;
strcpy(node->label, all_same_label(data, size) ? data[0].Play : majority_label(data, size));
return node;
}
double best_gr = -1;
int best_attr = -1;
for (int i = 0; i < attr_count; i++)
{ double gr = gain_ratio(data, size, attrs[i]);
if (gr > best_gr)
{ best_gr = gr;
best_attr = i;
}
}
strcpy(node->attribute, attrs[best_attr]);
node->is_leaf = 0;
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attrs[best_attr], "Outlook")) val = data[i].Outlook;
else if (equals(attrs[best_attr], "Temperature")) val = data[i].Temperature;
else if (equals(attrs[best_attr], "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ found = 1;
break;
}
if (!found) strcpy(values[value_count++], val);
}
for (int i = 0; i < value_count; i++)
{ Sample subset[MAX_SAMPLES];
int subset_size = 0;
for (int j = 0; j < size; j++)
{ char *val;
if (equals(attrs[best_attr], "Outlook")) val = data[j].Outlook;
else if (equals(attrs[best_attr], "Temperature")) val = data[j].Temperature;
else if (equals(attrs[best_attr], "Humidity")) val = data[j].Humidity;
else val = data[j].Windy;
if (equals(values[i], val))
subset[subset_size++] = data[j];
}
char *remaining_attrs[MAX_ATTR];
int new_count = 0;
for (int k = 0; k < attr_count; k++)
if (k != best_attr)
remaining_attrs[new_count++] = attrs[k];
node->children[node->branch_count] = build_tree(subset, subset_size, remaining_attrs, new_count);
strcpy(node->branch_values[node->branch_count++], values[i]);
}
return node;
}
4.结果呈现与模型应用
当决策树在内存中构建完成后，需要将其以人类可读的方式展示出来，并应用到实际的分类任务中。
（1）可视化打印决策树 print_tree()
为了直观地展示树的结构，print_tree() 函数同样采用了递归的方式。它接收一个节点和当前的层级深度 level 作为参数。通过在打印前输出 level 数量的空格，实现了层次化的缩进效果。它会先打印当前节点的信息，然后遍历其所有子节点，并对每个子节点增加缩进深度后进行递归调用。
void print_tree(Node *node, int level)
{ if (node->is_leaf)
{ for (int i = 0; i < level; i++) printf(" ");
printf("Leaf: %s
", node->label);
return;
}
for (int i = 0; i < level; i++) printf(" ");
printf("Node: %s
", node->attribute);
for (int i = 0; i < node->branch_count; i++)
{ for (int j = 0; j < level; j++) printf(" ");
printf(" [%s = %s]
", node->attribute, node->branch_values[i]);
print_tree(node->children[i], level + 2);
}
}
（2）分类预测函数 predict()
predict() 函数模拟了使用决策树进行分类的完整过程。它接收树的根节点和一个待预测的新样本 sample。它会从根节点开始，判断当前节点的类型：
· 如果是叶节点，直接返回其标签作为预测结果。
· 如果是分裂节点，则根据该节点的分裂属性（如 "Outlook"），从输入样本中提取对应的属性值（如 "sunny"）。然后，遍历该节点的所有分支，寻找与该属性值匹配的分支，并沿着该分支递归调用 predict() 函数，进入下一层级的决策，直到最终到达一个叶节点。
const char *predict(Node *tree, Sample *sample)
{ if (tree->is_leaf) return tree->label;
const char *val;
if (equals(tree->attribute, "Outlook")) val = sample->Outlook;
else if (equals(tree->attribute, "Temperature")) val = sample->Temperature;
else if (equals(tree->attribute, "Humidity")) val = sample->Humidity;
else val = sample->Windy;
for (int i = 0; i < tree->branch_count; i++)
if (equals(tree->branch_values[i], val))
return predict(tree->children[i], sample);
return "Unknown";
}
（3）决策规则提取 extract_rules()
为了让模型的决策逻辑更加透明，extract_rules() 函数可以将树结构“翻译”成一系列 "IF ... AND ... THEN ..." 格式的规则。它通过递归遍历树的所有路径，在路径上不断拼接条件，当到达一个叶节点时，就形成了一条完整的规则并打印输出
void extract_rules(Node *tree, char *current_rule, int *rule_index)
{ if (tree->is_leaf)
{ printf("规则 %d: %s => %s
", (*rule_index)++, current_rule, tree->label);
return;
}
for (int i = 0; i < tree->branch_count; i++)
{ char new_rule[MAX_RULE_LEN];
if (strlen(current_rule) == 0)
snprintf(new_rule, sizeof(new_rule), "%s=%s", tree->attribute, tree->branch_values[i]);
else
snprintf(new_rule, sizeof(new_rule), "%s AND %s=%s", current_rule, tree->attribute, tree->branch_values[i]);
extract_rules(tree->children[i], new_rule, rule_index);
}
}
5.主程序入口与流程调度
main() 函数是整个实验的总指挥，它按照逻辑顺序调用之前定义的所有模块，完成从数据加载到结果展示的完整流程。
（1）初始化与数据展示：首先打印整个原始数据集，方便对照。
（2）信息增益率计算：循环遍历所有属性，调用 info_gain()（带细节打印）和 gain_ratio()，详细展示每个属性的熵、信息增益和信息增益率的计算过程。
（3）根节点选择：再次计算所有属性的增益率，选出最优者作为树的根节点并打印。
（4）构建并打印树：调用 build_tree() 构建决策树，然后调用 print_tree() 将其可视化输出。
（5）模型应用与评估：定义一个包含新样本的测试集，循环调用 predict() 函数进行预测并打印结果。同时，用原始训练集来测试模型，计算并输出其准确率。
（6）规则提取：最后调用 extract_rules()，将训练好的模型转化为一系列清晰的决策规则。
int main()
{ printf("原始数据:
");
printf("========================================
");
printf(" %-10s %-12s %-10s %-7s %-5s
", "Outlook", "Temperature", "Humidity", "Windy", "Play?");
printf("----------------------------------------
");
for (int i = 0; i < total_samples; i++)
printf(" %-10s %-12s %-10s %-7s %-5s
",
data[i].Outlook, data[i].Temperature, data[i].Humidity, data[i].Windy, data[i].Play);
printf("
================================================================================
");
printf("2. 计算各属性的信息增益率与熵:
");
printf("--------------------------------------------------------------------------------
");
double total_entropy = entropy(data, total_samples);
printf("数据集总熵: %.4f
", total_entropy);
for (int i = 0; i < attr_count; i++)
{ double ig = info_gain(data, total_samples, attributes[i], 1);
double si = split_info(data, total_samples, attributes[i]);
double gr = (si == 0) ? 0 : ig / si;
printf("%s:
", attributes[i]);
printf(" 信息增益(Info Gain): %.4f
", ig);
printf(" 分裂信息(Split Info): %.4f
", si);
printf(" 信息增益率(Gain Ratio): %.4f
", gr);
}
printf("================================================================================
");
printf("3. 选择根节点分裂属性:
");
printf("--------------------------------------------------------------------------------
");
double best_gr = -1;
int best_index = -1;
for (int i = 0; i < attr_count; i++)
{ double gr = gain_ratio(data, total_samples, attributes[i]);
if (gr > best_gr)
{ best_gr = gr;
best_index = i;
}
}
printf("最佳分裂属性: %s
信息增益率: %.4f
", attributes[best_index], best_gr);
printf("
================================================================================
");
printf("4. 建立决策树:
");
printf("--------------------------------------------------------------------------------
");
Node *tree = build_tree(data, total_samples, attributes, attr_count);
printf("决策树结构:
");
print_tree(tree, 0);
printf("================================================================================
");
printf("5. 对新输入进行分类预测:
");
printf("--------------------------------------------------------------------------------
");
Sample tests[] =
{ {"sunny", "cool", "high", "true", ""},
{"overcast", "hot", "normal", "false", ""},
{"rain", "mild", "high", "false", ""},
{"sunny", "mild", "normal", "false", ""},
{"rain", "cool", "normal", "true", ""}
};
int test_count = 5;
for (int i = 0; i < test_count; i++)
{ const char *pred = predict(tree, &tests[i]);
printf("测试样本 %d:
", i + 1);
printf(" 输入: Outlook=%-8s Temperature=%-6s Humidity=%-8s Windy=%-5s
",
tests[i].Outlook, tests[i].Temperature, tests[i].Humidity, tests[i].Windy);
printf(" 预测结果: %s
", pred);
}
printf("================================================================================
");
printf("训练集预测准确率:
");
printf("--------------------------------------------------------------------------------
");
int correct = 0;
for (int i = 0; i < total_samples; i++)
{ const char *pred = predict(tree, &data[i]);
if (equals(pred, data[i].Play)) correct++;
}
double acc = (double)correct / total_samples * 100.0;
printf("准确率: %d/%d = %.2f%%
", correct, total_samples, acc);
printf("================================================================================
");
printf("6. 提取决策规则:
");
printf("--------------------------------------------------------------------------------
");
int rule_index = 1;
extract_rules(tree, "", &rule_index);
printf("================================================================================
");
return 0;
}
4 最终代码
#include
#include
#include
#include
#define MAX_SAMPLES 20
#define MAX_ATTR 5
#define MAX_VALUE_LEN 20
#define MAX_RULE_LEN 256
#define MAX_RULES 50
//一、结构体定义
typedef struct Node
{ char attribute[MAX_VALUE_LEN];
char label[MAX_VALUE_LEN];
int is_leaf;
int branch_count;
char branch_values[MAX_SAMPLES][MAX_VALUE_LEN];
struct Node *children[MAX_SAMPLES];
} Node;
typedef struct
{ char Outlook[MAX_VALUE_LEN];
char Temperature[MAX_VALUE_LEN];
char Humidity[MAX_VALUE_LEN];
char Windy[MAX_VALUE_LEN];
char Play[MAX_VALUE_LEN];
} Sample;
// 二、训练数据集定义
Sample data[MAX_SAMPLES] =
{ {"sunny", "hot", "high", "false", "No"},
{"sunny", "hot", "high", "true", "No"},
{"overcast", "hot", "high", "false", "Yes"},
{"rain", "mild", "high", "false", "Yes"},
{"rain", "cool", "normal", "false", "Yes"},
{"rain", "cool", "normal", "true", "No"},
{"overcast", "cool", "normal", "true", "Yes"},
{"sunny", "mild", "high", "false", "No"},
{"sunny", "cool", "normal", "false", "Yes"},
{"rain", "mild", "normal", "false", "Yes"},
{"sunny", "mild", "normal", "true", "Yes"},
{"overcast", "mild", "high", "true", "Yes"},
{"overcast", "hot", "normal", "false", "Yes"},
{"rain", "mild", "high", "true", "No"}
};
int total_samples = 14;
char *attributes[] = {"Outlook", "Temperature", "Humidity", "Windy"};
int attr_count = 4;
//三、工具函数定义
int equals(const char *a, const char *b)
{ return strcmp(a, b) == 0;
}
/* ---------- 计算样本集合的熵 ---------- */
double entropy(Sample *data, int size)
{ if (size == 0) return 0.0;
int count_yes = 0, count_no = 0;
for (int i = 0; i < size; i++)
{ if (equals(data[i].Play, "Yes")) count_yes++;
else count_no++;
}
double p1 = (double)count_yes / size, p2 = (double)count_no / size;
double e = 0.0;
if (p1 > 0) e -= p1 * log2(p1);
if (p2 > 0) e -= p2 * log2(p2);
return e;
}
/* ---------- 计算分裂信息（Split Info） ---------- */
double split_info(Sample *data, int size, char *attr)
{ if (size == 0) return 0;
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int counts[MAX_SAMPLES] = {0}, value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attr, "Outlook")) val = data[i].Outlook;
else if (equals(attr, "Temperature")) val = data[i].Temperature;
else if (equals(attr, "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ counts[j]++;
found = 1;
break;
}
if (!found)
{ strcpy(values[value_count], val);
counts[value_count++] = 1;
}
}
double si = 0;
for (int i = 0; i < value_count; i++)
{ double p = (double)counts[i] / size;
si -= p * log2(p);
}
return si;
}
/* ---------- 计算信息增益（Info Gain） ---------- */
double info_gain(Sample *data, int size, char *attr, int print_detail)
{ double total_entropy = entropy(data, size);
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attr, "Outlook")) val = data[i].Outlook;
else if (equals(attr, "Temperature")) val = data[i].Temperature;
else if (equals(attr, "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ found = 1;
break;
}
if (!found) strcpy(values[value_count++], val);
}
double weighted_entropy = 0;
if (print_detail)
printf(" 子集熵计算:
");
for (int i = 0; i < value_count; i++)
{ Sample subset[MAX_SAMPLES];
int subset_size = 0;
for (int j = 0; j < size; j++)
{ char *val;
if (equals(attr, "Outlook")) val = data[j].Outlook;
else if (equals(attr, "Temperature")) val = data[j].Temperature;
else if (equals(attr, "Humidity")) val = data[j].Humidity;
else val = data[j].Windy;
if (equals(val, values[i]))
subset[subset_size++] = data[j];
}
double subset_entropy = entropy(subset, subset_size);
double p = (double)subset_size / size;
weighted_entropy += p * subset_entropy;
if (print_detail)
printf(" %-10s: 熵=%.4f, 权重=%.2f, 贡献=%.4f
",
values[i], subset_entropy, p, p * subset_entropy);
}
if (print_detail)
{ printf(" Info_%s(D) = %.4f
", attr, weighted_entropy);
printf(" 信息增益计算: %.4f - %.4f = %.4f
",
total_entropy, weighted_entropy, total_entropy - weighted_entropy);
}
return total_entropy - weighted_entropy;
}
/* ---------- 信息增益率 ---------- */
double gain_ratio(Sample *data, int size, char *attr)
{ double ig = info_gain(data, size, attr, 0);
double si = split_info(data, size, attr);
return (si == 0) ? 0 : ig / si;
}
//四、决策树构建
int all_same_label(Sample *data, int size)
{ for (int i = 1; i < size; i++)
if (!equals(data[0].Play, data[i].Play))
return 0;
return 1;
}
const char *majority_label(Sample *data, int size)
{ int count_yes = 0;
for (int i = 0; i < size; i++)
if (equals(data[i].Play, "Yes"))
count_yes++;
return (count_yes >= size - count_yes) ? "Yes" : "No";
}
Node *build_tree(Sample *data, int size, char **attrs, int attr_count)
{ Node *node = (Node *)malloc(sizeof(Node));
memset(node, 0, sizeof(Node));
if (all_same_label(data, size) || attr_count == 0)
{ node->is_leaf = 1;
strcpy(node->label, all_same_label(data, size) ? data[0].Play : majority_label(data, size));
return node;
}
double best_gr = -1;
int best_attr = -1;
for (int i = 0; i < attr_count; i++)
{ double gr = gain_ratio(data, size, attrs[i]);
if (gr > best_gr)
{ best_gr = gr;
best_attr = i;
}
}
strcpy(node->attribute, attrs[best_attr]);
node->is_leaf = 0;
char values[MAX_SAMPLES][MAX_VALUE_LEN];
int value_count = 0;
for (int i = 0; i < size; i++)
{ char *val;
if (equals(attrs[best_attr], "Outlook")) val = data[i].Outlook;
else if (equals(attrs[best_attr], "Temperature")) val = data[i].Temperature;
else if (equals(attrs[best_attr], "Humidity")) val = data[i].Humidity;
else val = data[i].Windy;
int found = 0;
for (int j = 0; j < value_count; j++)
if (equals(values[j], val))
{ found = 1;
break;
}
if (!found) strcpy(values[value_count++], val);
}
for (int i = 0; i < value_count; i++)
{ Sample subset[MAX_SAMPLES];
int subset_size = 0;
for (int j = 0; j < size; j++)
{ char *val;
if (equals(attrs[best_attr], "Outlook")) val = data[j].Outlook;
else if (equals(attrs[best_attr], "Temperature")) val = data[j].Temperature;
else if (equals(attrs[best_attr], "Humidity")) val = data[j].Humidity;
else val = data[j].Windy;
if (equals(values[i], val))
subset[subset_size++] = data[j];
}
char *remaining_attrs[MAX_ATTR];
int new_count = 0;
for (int k = 0; k < attr_count; k++)
if (k != best_attr)
remaining_attrs[new_count++] = attrs[k];
node->children[node->branch_count] = build_tree(subset, subset_size, remaining_attrs, new_count);
strcpy(node->branch_values[node->branch_count++], values[i]);
}
return node;
}
//五、打印与预测函数
void print_tree(Node *node, int level)
{ if (node->is_leaf)
{ for (int i = 0; i < level; i++) printf(" ");
printf("Leaf: %s
", node->label);
return;
}
for (int i = 0; i < level; i++) printf(" ");
printf("Node: %s
", node->attribute);
for (int i = 0; i < node->branch_count; i++)
{ for (int j = 0; j < level; j++) printf(" ");
printf(" [%s = %s]
", node->attribute, node->branch_values[i]);
print_tree(node->children[i], level + 2);
}
}
const char *predict(Node *tree, Sample *sample)
{ if (tree->is_leaf) return tree->label;
const char *val;
if (equals(tree->attribute, "Outlook")) val = sample->Outlook;
else if (equals(tree->attribute, "Temperature")) val = sample->Temperature;
else if (equals(tree->attribute, "Humidity")) val = sample->Humidity;
else val = sample->Windy;
for (int i = 0; i < tree->branch_count; i++)
if (equals(tree->branch_values[i], val))
return predict(tree->children[i], sample);
return "Unknown";
}
//六、提取决策规则
void extract_rules(Node *tree, char *current_rule, int *rule_index)
{ if (tree->is_leaf)
{ printf("规则 %d: %s => %s
", (*rule_index)++, current_rule, tree->label);
return;
}
for (int i = 0; i < tree->branch_count; i++)
{ char new_rule[MAX_RULE_LEN];
if (strlen(current_rule) == 0)
snprintf(new_rule, sizeof(new_rule), "%s=%s", tree->attribute, tree->branch_values[i]);
else
snprintf(new_rule, sizeof(new_rule), "%s AND %s=%s", current_rule, tree->attribute, tree->branch_values[i]);
extract_rules(tree->children[i], new_rule, rule_index);
}
}
//七、主程序入口
int main()
{ printf("原始数据:
");
printf("========================================
");
printf(" %-10s %-12s %-10s %-7s %-5s
", "Outlook", "Temperature", "Humidity", "Windy", "Play?");
printf("----------------------------------------
");
for (int i = 0; i < total_samples; i++)
printf(" %-10s %-12s %-10s %-7s %-5s
",
data[i].Outlook, data[i].Temperature, data[i].Humidity, data[i].Windy, data[i].Play);
printf("
================================================================================
");
printf("2. 计算各属性的信息增益率与熵:
");
printf("--------------------------------------------------------------------------------
");
double total_entropy = entropy(data, total_samples);
printf("数据集总熵: %.4f
", total_entropy);
for (int i = 0; i < attr_count; i++)
{ double ig = info_gain(data, total_samples, attributes[i], 1);
double si = split_info(data, total_samples, attributes[i]);
double gr = (si == 0) ? 0 : ig / si;
printf("%s:
", attributes[i]);
printf(" 信息增益(Info Gain): %.4f
", ig);
printf(" 分裂信息(Split Info): %.4f
", si);
printf(" 信息增益率(Gain Ratio): %.4f
", gr);
}
printf("================================================================================
");
printf("3. 选择根节点分裂属性:
");
printf("--------------------------------------------------------------------------------
");
double best_gr = -1;
int best_index = -1;
for (int i = 0; i < attr_count; i++)
{ double gr = gain_ratio(data, total_samples, attributes[i]);
if (gr > best_gr)
{ best_gr = gr;
best_index = i;
}
}
printf("最佳分裂属性: %s
信息增益率: %.4f
", attributes[best_index], best_gr);
printf("
================================================================================
");
printf("4. 建立决策树:
");
printf("--------------------------------------------------------------------------------
");
Node *tree = build_tree(data, total_samples, attributes, attr_count);
printf("决策树结构:
");
print_tree(tree, 0);
printf("================================================================================
");
printf("5. 对新输入进行分类预测:
");
printf("--------------------------------------------------------------------------------
");
Sample tests[] =
{ {"sunny", "cool", "high", "true", ""},
{"overcast", "hot", "normal", "false", ""},
{"rain", "mild", "high", "false", ""},
{"sunny", "mild", "normal", "false", ""},
{"rain", "cool", "normal", "true", ""}
};
int test_count = 5;
for (int i = 0; i < test_count; i++)
{ const char *pred = predict(tree, &tests[i]);
printf("测试样本 %d:
", i + 1);
printf(" 输入: Outlook=%-8s Temperature=%-6s Humidity=%-8s Windy=%-5s
",
tests[i].Outlook, tests[i].Temperature, tests[i].Humidity, tests[i].Windy);
printf(" 预测结果: %s
", pred);
}
printf("================================================================================
");
printf("训练集预测准确率:
");
printf("--------------------------------------------------------------------------------
");
int correct = 0;
for (int i = 0; i < total_samples; i++)
{ const char *pred = predict(tree, &data[i]);
if (equals(pred, data[i].Play)) correct++;
}
double acc = (double)correct / total_samples * 100.0;
printf("准确率: %d/%d = %.2f%%
", correct, total_samples, acc);
printf("================================================================================
");
printf("6. 提取决策规则:
");
printf("--------------------------------------------------------------------------------
");
int rule_index = 1;
extract_rules(tree, "", &rule_index);
printf("================================================================================
");
return 0;
}
